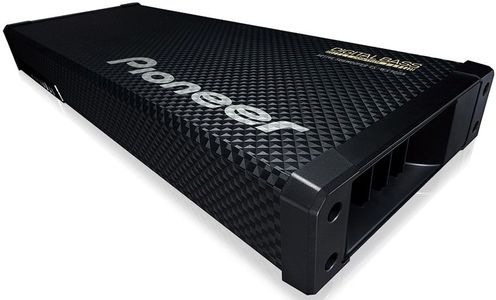

Pioneer Compact Powered Subwoofer
Pioneer Compact Powered Subwoofer 0
Pioneer Compact Powered Subwoofer 1
Pioneer Compact Powered Subwoofer 2

Pioneer Compact Powered Subwoofer

Model #: TS-WX70DA
At a Glance
With Class-D amplifier technology, the subwoofer generates 200W maximum power, consuming power at levels lower than conventional amplifier designs and reducing the need for a large, traditional heat sink. The result is a compact, easy to install amplifier which in some vehicles requires no direct battery connection.
Available in Store Only

Get to know this product.

  • 200 Watts Max Power (100 Watts Nominal)
  • Selectable Bass Modes: DEEP and DYNAMIC
  • Rear loaded horn-type structure
  • Solid body and build for flexible installation

Selectable “BASS MODE”

TS-WX70DA features two selectable Bass Modes: DEEP and DYNAMIC, producing strong, rich, deep bass you can feel. You can easily control and customize the bass output from the supplied wired remote control.

  • DEEP Mode: Achieve rich, deep bass sound quality in the car. Suitable for Classic, Jazz, Country Music, etc.
  • DYNAMIC Mode: Emphasize powerful, strong and dynamic bass sound in the car. Suitable for EDM, Hip-Hop, Rock Music, etc.

Back Loaded Horn Structure

The rear loaded horn-type structure passively amplifies sound for deeper, more natural bass reproduction.

Installation Flexibility

With its solid body and build, the TS-WX70DA can be installed wherever space is available in a car's luggage area.



ImpedanceDVC 2 Ohms x2
Sensitivity (IN CAR, INPUT: 1W)DEEP: 104dB, DYNAMIC 110dB
Max. Music Power (Nominal)200W (100W)
Frequency ResponseDEEP: 20 Hz to 250 Hz DYNAMIC: 40Hz to 250Hz

Misc. Specs

Manufacturer Warranty1 Year
Width (in.)33.471516
Depth (in.)12.72
Height (in.)3.81
RMS Power Handling (Watts)100
Mounting Hardware IncludedYes
Peak Power Rating (Watts)200
Subwoofer SizeUp to 8"
Product Weight (lbs.)22.94
