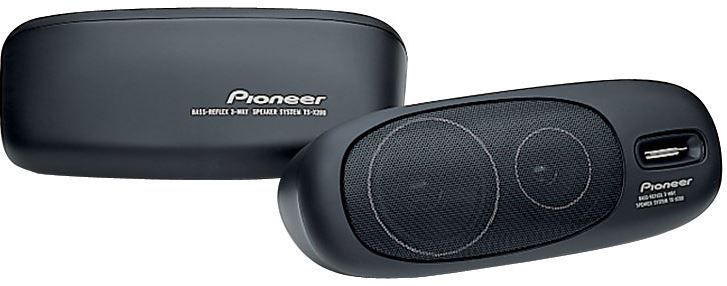

Pioneer 3-Way Surface Mount Speaker with 80 watts maximum power handling and 0.75" horn tweeter.

Pioneer 3-Way Surface Mount Speaker

80 Watts Maximum Power, 20 Watts Nominal Power

Some vehicles call for speakers to be surface-mounted, rather than flush-mounted. Pioneer's line of surface-mounted speakers offers a range of speaker configurations and sizes to fit your vehicle- and your wallet.

General Specs
Impedance	4 Ohms
Car Speaker Size	4
Mounting Hardware Included	No
Water Resistant	No
RMS Power Handling (Watts)	20
Peak Power Rating (Watts)	80
Shallow Mount	No
General
Size	4"
Cone Material	IMPP
Sensitivity (1 W/1 m)	89 dB
Max. Music Power (Nominal)	80 W (20 W)
Frequency Response	65 Hz to 30 kHz
Impedance	4 Ω
