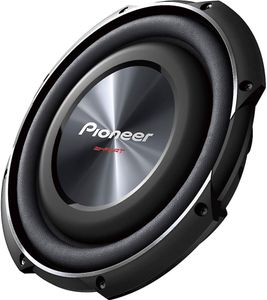

This 10" shallow subwoofer handles 1,200 watts max., 300 watts nominal power, and delivers deep bass with top-notch sound quality thanks to features like Pioneer's MICA injection-molded resin which gives it the ability to produce accurate bass.
The TS-SW2502S4 utilizes an oversized cone structure that provides greater cone and gasket surface without changing its standard external dimension. This cone surface allows the subwoofer to produce louder and deeper bass by moving more air.
The cone structure of this subwoofer uses a highly rigid cone made with MICA injected molded resin which creates a rigid and durable cone, giving it the ability to produce accurate bass.
Designed to perform in small enclosures or spaces that traditional subwoofers can't fit, like behind the backseat of pick-ups, the TS-SW2502S4 can produce a lot of bass without having to sacrifice space in a trunk or truck cab.
Size | 10" |
Frequency Response | 20 Hz to 125 Hz |
Impedance | Single 4 Ohms |
Cut-Out Dimensions | 9-3/4" |
Max. Music Power (Nominal) | 1,200 W (300 W) |
Sensitivity (IN CAR, INPUT: 1W) | 91 dB |
Mounting Depth | 3-1/8" |
Recommended Enclosure | 0.35 - 0.70 cu. ft. |
Woofer Size | 10" |
Mount Depth | 3.13 |
Subwoofer Size | 10" |
Shallow Mount | No |
