The Axis series from Terra provides that same all-climate made in Maine endurance as the Tr50 and Tr60 but with speakers designed to be mounted almost flush within walls or ceilings.Read More

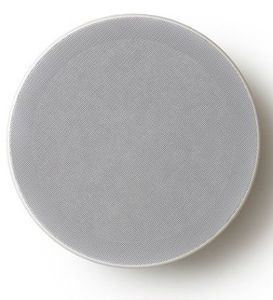

The TrAx80 is among the latest in a long series of high performance Terra installed loudspeakers. It incorporates our most powerful satellite woofer, an 8-inch ACAD fluid cooled driver combined with a 1-inch co-axial, fluid cooled aluminum tweeter.
This high frequency driver is mounted using a tiltable/aimable socket assembly to optimize performance even if the system must be installed in a less than ideal location. The TrAx80 is designed for those who want the best in sound indoors or out with deeper bass and higher output than the TrAx60.
All-climate
High-quality Sound
No Maintenance
Lifetime Guarantee
General Specs | |
| Frequency Response | 65Hz - 20kHz 3dB |
| Waterproof | Yes |
| RMS Power Handling (Watts) | 125 |
| Color | White |
| Impedance | 8 ohms |
| Maximum Power Handling (Watts) | 125 |
| Sensitivity | 88dB (1 Watt @ 1 Meter) |
| Speaker Type | Powered Stereo Speakers |
General | |
| Drivers | 8" ACAD Bass/Mid |
| Tweeter | Coaxial 1" Aluminum |
| Temperature Range | -20˚C - 105˚C |
| Grill | Micro-Perf Aluminum/ Square or Round |
| Power Handling | 125 Watts |
| Frequency Range | 50Hz - 20kHz 3dB |
| Impedance | 8 Ohms |
| Sensitivity | 88dB (1 Watt @ 1 Meter) |
| Nominal Coverage Angle | 90 degrees conical |
| Coverage Angle (1 Khz To 6 Khz) | 105 degrees |
| Rated Maximum SPL | Average: 109 dB Peak: 115 dB |
| Frame Dimensions | 10.75" Diameter (274mm) 5" Depth (127mm) |
| Cutout Dimensions | 9.5" Diameter (242mm) |
| Frame Size | Round Frame - 11 5/16" [287mm] / Square Frame 11 5/16" [287mm] x 11 5/16" [287mm] |
| Net Weight (Each) | 7.1 lbs. / 3.2 kg |
| Waterproof Rating | *IP67 Meets or exceeds MIL-STD-810G standards |
| Please Note | *CA Speakers must be sealed under the flange for the waterproof rating. |
