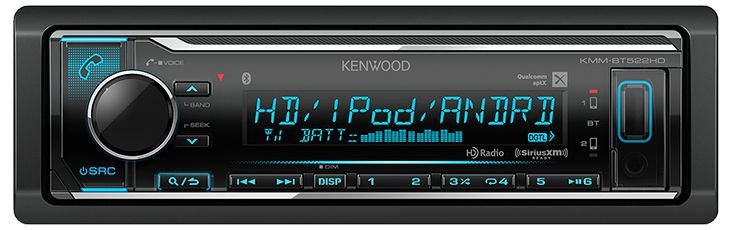

Kenwood KMM-BT522HD Car Receiver
At a Glance
Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.Read More
Get to know this product.
Product Overview
Product Overview
Equipped with the Intuitive KENWOOD Music Mix
KENWOOD Remote App Ready
MP3/WMA/AAC/WAV/FLAC Files Playback
Equipped with 2 USB Ports
Dual Phone Connection
Android Rapid Charge
Wireless Music Browsing
Spotify Ready
Pandora/Spotify Ready so You Can Stream Your Favorite Songs from Your Smartphone
Ability to control Pandora and Spotify from your iPhone via USB/Bluetooth or from your Android via Bluetooth to enjoy millions of songs you like.
Equipped with the Intuitive KENWOOD Music Mix
Up to 5 Bluetooth® devices can be connected to the head unit at the same time and you can enjoy audio streaming just by switching the devices with your friends or family.
Dual Phone Connection Allows You to Operate up to Two Phones Hands-Free
Allows two phones to be connected for hands-free operation at any time. Easily switch between both phones for incoming call. Also includes wide-band hands-free profile ver.1.6 for high quality clear calling.
Operate the Receiver from Your Smartphone with the KENWOOD Remote App
A smartphone application can control most basic functions of the receiver over the Bluetooth connection of the paired phone (iPhone or Android).
Equipped with Dual USB Ports
Play your music from one USB port and use the other to charge your device, or charge both at the same time.
Match Your Mood with Variable Color Illumination
Bright variable color LED's can be adjusted to match any color dash lighting.
Short Chassis for Easier Installation than Ever before
With Audio receivers shorter in depth than any of our previous models, installation is made easier in a wider range of cars than ever before.
Playable in Various Audio File Formats
Compatible with a broad range of audio file formats from high-resolution audio sources such as FLAC and WAV, to MP3, WMA and AAC.
Optimal Sound Performance with 13 Band Graphic EQ and Time Alignment
Use the graphic equalizer to tailor the sound quality to your unique tastes. Additional sound staging is available with the Time Alignment feature, designed to provide optimal sound performance.
Wireless Music Browsing (AVRCP 1.5)
Search and select songs from your music collection through a Bluetooth® connection.
Useful Documents
Specifications
General Specs | |
| Product Weight (lbs.) | 1.5 |
| Number of USB Ports | 2 |
| Car Stereo Din Size | Single |
| Bluetooth Capable | Yes |
| Android Capable | Yes |
| Aux Input | No |
| Compatible Devices | Android/iOS |
| GPS | No |
| Faceplate Style | Detachable |
| Satellite Radio Ready | Yes |
| Color | Black |
FM | |
| Frequency Range (Frequency Step) | 87.9MHz - 107.9MHz (200kHz) |
| Usable Sensitivity S/N 30 Db | 7.2dBf; (0.63μV/75Ω） |
| Quieting Sensitivity; DIN S/N 46dB | 15.2dBf; (1.58μV/75Ω） |
| Frequency Response (±3.0dB) | 30Hz-15kHz |
| S/N (dB) | 0 - 20.01ft (0.03or0.04ft Step) |
| Selectivity | 68dB(MONO) |
| Stereo Separation | 40dB(1kHz) |
Digital FM | |
| Frequency Range | 87.9MHz - 107.9MHz |
| Frequency Step | (200kHz) |
| Frequency Response (±3.0dB) | 20Hz-20kHz |
| S/N | 75dB(STEREO) |
Digital AM | |
| Frequency Range | 530kHz - 1700kHz |
| Frequency Step | (10kHz) |
| Frequency Response | 40Hz - 15kHz |
| S/N | 80dB (STEREO) |
AM | |
| Frequency Range | 530kHz - 1700kHz |
| Frequency Step | (10kHz) |
| Usable Sensitivity; S/N:20dB | 29dBμ (28.2μV) |
Digital AM | |
| Frequency Range | 530kHz - 1700kHz |
| Frequency Step | (10kHz) |
| Frequency Response (±3.0dB) | 40Hz-15kHz |
| S/N (dB) | 70dB(STEREO) |
AM | |
| Frequency Range | 530kHz - 1700kHz |
| Frequency Step | (10kHz) |
| Usable Sensitivity | 28dBμ |
USB I/F | |
| USB | USB 1.1 / 2.0 Full speed |
| File System | FAT12 / 16 / 32 |
| Maximum Supply current | DC5V(DC logo) 1.5A |
| Frequency Response | 20Hz-20kHz(±1dB) |
| S/N Ratio (dB) | 105dB(1kHz) |
| Dynamic Range | 90dB |
| Channel Separation | 85dB |
| MP3 Decode | Compliant with MPEG-1/2 Audio Layer-3 |
| WMA Decode | Compliant with Windows Media Audio |
| AAC Decode | AAC-LC ".aac", ".m4a" files |
| WAV Decode | Linear-PCM |
| FLAC Decode | FLAC file (Up to 96kHz/24bit) |
Aux Input | |
| Frequency Response | 20Hz-20kHz ±3dB |
| Input Maximum Voltage | 1000mV |
| Input Impedance | 30kΩ |
Amp | |
| Maximum Power | 50Wx4 |
| Full Bandwidth Power (at less than 1%THD) | 22Wx4 |
Tone | |
| Band1 | 62.5Hz ±9dB |
| Band2 | 100Hz ±9dB |
| Band3 | 160Hz ±9dB |
| Band4 | 250Hz ±9dB |
| Band5 | 400Hz ±9dB |
| Band6 | 630Hz ±9dB |
| Band7 | 1kHz ±9dB |
| Band8 | 1.6kHz ±9dB |
| Band9 | 2.5kHz ±9dB |
| Band10 | 4kHz ±9dB |
| Band11 | 6.3kHz ±9dB |
| Band12 | 10kHz ±9dB |
| Band13 | 16kHz ±9dB |
Bluetooth | |
| Version | Bluetooth 3.0 |
| Frequency Range | 2.402-2.480GHz |
| Output Power | +4dBm(MAX), 0dBm（AVE）Power Class 2 |
| Maximum Communication range | Line of sight approx.10m(32.8ft) |
| Profile | HFP(Hands Free Profile), SPP(Serial Port Profile), PBAP(Phonebook Access Profile), A2DP(Advanced Audio Distribution Profile), AVRCP(Audio/Video Remote Control Profile) |
General | |
| Operating Voltage (10.5～16V allowable) | 14.4V |
| Maximum Current Consumption | 10A |
| Operational Temperature Range | -10°C to +60°C |
| Installation Size (W) (H) (D) | 182(mm) 7-3/16(in), 53(mm) 2-1/16(in), 100(mm) 3-15/16(in) |
| Net Weight (Trim plate and Mounting sleeve: Included) | 0.7(kg) 1.5(lbs) |
| Preout Level(MV)/Load- Unbalanced | 4000mV/10kΩ (USB) |
| Preout Impedance | ≦600Ω |
| Speaker Impedance | 4-8Ω |
