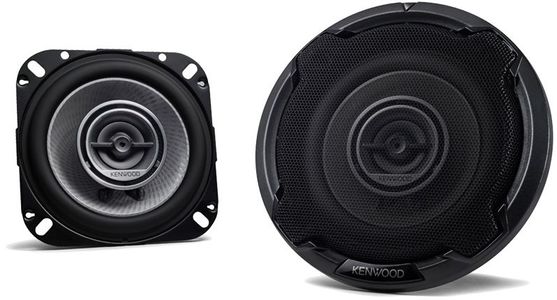

Kenwood KFC-D101 4" Round 2-way 2 Speaker

Model #: KFC-D101

At a Glance

KFC-D101 4" Round 2-way 2 Speaker with a diamond array pattern woofer cone and acoustic sound harmonizer.

WarningProposition 65 Warning for California Residents
Kenwood KFC-D101 4" Round 2-way 2 Speaker

General Specs

Impedance4 Ohms
Width (in.)4.13
Depth (in.)1.69
Product Weight (lbs.)2.3
Car Speaker Size4
RMS Power Handling (Watts)50
Peak Power Rating (Watts)220

General

Peak Input Power220W
Rated Input Power50W
Impedance
Woofer Features4 inch Paper Cone
Midrange Features1 inch Paper Cone
Sensitivity85 dB/ W / m
Frequency Response114Hz -25KHz
Cutout Diameter3-11/16inch
Mounting Depth1-11/16 inch
Gross Weight2.3lbs
Weight of Magnet(Woofer)0.35lbs

Kenwood KFC-D101 4" Round 2-way 2 Speaker

Model #: KFC-D101
298708
Model #: KFC-D101
Kenwood
$99,999.00

Request a Quote

At a Glance

KFC-D101 4" Round 2-way 2 Speaker with a diamond array pattern woofer cone and acoustic sound harmonizer.

Get to know this product.

Diamond Array Pattern Woofer Cone

Acoustic Sound Harmonizer

Sound Field Enhancer

Diamond Array Pattern Woofer Cone

This technology enhances sound and reduces distortion.

Sound Field Enhancer

This unique shape of the tweeter creates strong frontward sound as well as a wider sound field in 5kHz and higher frequencies.

Acoustic Sound Harmonizer

Produces a smooth and natural sound by controlling woofer sound waves and allowing only certain frequencies to pass through the holes of the tweeter panel.

Factory Location Fit

The tweeter height is designed as low as possible, allowing the speakers to easily fit in most factory locations.

1. Black Painted Yoke and Plate

By implementing black paint on these parts, heat is released efficiently inside the magnetic circuit, resulting in temperature reduction of the voice coil and improved durability.

2. New Woofer Damper Shape

Stress leveling points increase durability and provide a smoother sound response.

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Width (in.)4.13
Depth (in.)1.69
Product Weight (lbs.)2.3
Car Speaker Size4
RMS Power Handling (Watts)50
Peak Power Rating (Watts)220

General

Peak Input Power220W
Rated Input Power50W
Impedance
Woofer Features4 inch Paper Cone
Midrange Features1 inch Paper Cone
Sensitivity85 dB/ W / m
Frequency Response114Hz -25KHz
Cutout Diameter3-11/16inch
Mounting Depth1-11/16 inch
Gross Weight2.3lbs
Weight of Magnet(Woofer)0.35lbs
