JL Audio® Wired, Full-Function NMEA 2000® Network Controller with Full-Color LCD Display

Model #: MMR-40

At a Glance

Full-function, NMEA 2000® network wired remote controller with full color LCD display

WarningProposition 65 Warning for California Residents
JL Audio® Wired, Full-Function NMEA 2000® Network Controller with Full-Color LCD Display

General Specs

DVD PlayerNo
CD PlayerNo
Car Stereo Din SizeDouble
Bluetooth CapableNo
Android CapableNo
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
Faceplate StyleIn-Dash
Satellite Radio ReadyNo
Carplay CapableNo
ColorBlack
Voice ActivatedNo

JL Audio® Wired, Full-Function NMEA 2000® Network Controller with Full-Color LCD Display

Model #: MMR-40
461752
Model #: MMR-40
JL Audio
$99,999.00

Call for Best Price

At a Glance

Full-function, NMEA 2000® network wired remote controller with full color LCD display

Get to know this product.

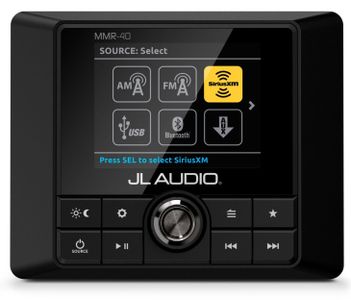

The MMR-40 is a NMEA 2000® Network Controller engineered to add full-function, auxiliary control to MediaMaster® source units.

Outfitted with a NMEA 2000® Micro-C connector, the MMR-40 connects to a host MediaMaster® source unit in two ways:

Direct interface with a vessel's NMEA 2000® network using applicable NMEA 2000® cables and connectors (not included)

Direct connection of one MMR-40 with one host MediaMaster® source unit using MMC-PN2K powered network cables (sold separately) to simulate an isolated, stand-alone NMEA 2000® network

Once connected, the MMR-40 automatically recognizes the host MediaMaster® source unit and will then mirror all host source unit controls and screen info onto the MMR-40's full-color, 2.8-inch LCD display, resulting in a complete MediaMaster® user experience.

The MMR-40 is equipped with independent display theme and lighting controls for maximum mounting location flexibility, regardless of the settings on the host source unit. Engineered for real-world marine (and many outdoor) applications, its weatherproof (IP66 rated) chassis is built to withstand the harshest environments.

The MMR-40 includes the following features:

NMEA 2000® Certified (LEN 4)

Easy-to-read, high-brightness, 2.8-inch full-color LCD display with large backlit controls

Independent day/night display themes and lighting controls

IP66 rated for real marine duty

Protective Sun Cover included

Note: The MMR-40 is not a stand-alone receiver and does not function without a connected MediaMaster® source unit. All remote control functionality of the MMR-40 is solely derived from the host source unit. Functionality of the MMR-40 requires connection to a NMEA 2000® network or use of MMC-PN2K powered network cables (sold separately).

Useful Documents
Specifications

General Specs

DVD PlayerNo
CD PlayerNo
Car Stereo Din SizeDouble
Bluetooth CapableNo
Android CapableNo
TouchscreenNo
Manufacturer Warranty2 Year
Water ResistantYes
Aux InputYes
Faceplate StyleIn-Dash
Satellite Radio ReadyNo
Carplay CapableNo
ColorBlack
Voice ActivatedNo
