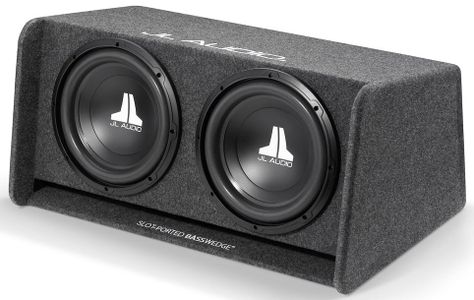

JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System
JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System 0
JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System 1
JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System 2
JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System 3

JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System

Model #: CP212-W0v3
137199
JL Audio
At a Glance
JL Audio® Dual 12W0v3 BassWedge™ Subwoofer System with 2 Ohms nominal impedance and dual 12" subwoofers
Call for Best Price

People also viewed:

Get to know this product.

This powerful slot-ported BassWedge™ subwoofer system delivers awesome output at an unsurpassed value.

The slot-port runs along the bottom of the enclosure and fires on the same plane as the woofers to produce excellent extension and response smoothness. The port mouth is flared to minimize air-flow noises.

The ultra-versatile BassWedge™ shape has extended sides so that it can be placed with the woofers firing out or straight down, off the floor of the vehicle. The shape works equally well in forward or rear-firing installations. This gives you plenty of options for tweaking the loading of the enclosure into your vehicle.

  • This subwoofer system is shipped wired, loaded and ready to connect via a push-button terminal.
  • Finish: Dark gray, high-grade automotive carpet with "JL AUDIO" embroidery on the top edge and "Slot-Ported BassWedge™" embroidered on the port mouth.
  • Construction: MDF
  • Recommended amplifier power: 150 - 600W

Specifications

  • Continuous Power Handling (RMS): 600 W
  • System Nominal Impedance: 2 O
  • Enclosure Type Slot-ported
  • Finish: Gray carpet

Dimensions

  • External Width (W): 31.375 in / 797 mm
  • External Height (H): 15.18 in / 386 mm
  • External Depth: 20.3 in / 516 mm
  • External Top Surface Depth: 15.75 in / 400 mm
  • Net Weight: 60.3 lb / 27.35 kg
Specifications

Construction

Enclosure Type:Slot-Ported

Specifications

Maximum Power Handling:600W

Misc. Specs

ColorGray
Manufacturer Warranty2 Year
Width (in.)31.38
Color Finish NameGray
Height (in.)15.18
RMS Power Handling (Watts)600
Mounting Hardware IncludedNo
Subwoofer Size12"
Amplified ReceptionYes
Product Weight (lbs.)60.3
