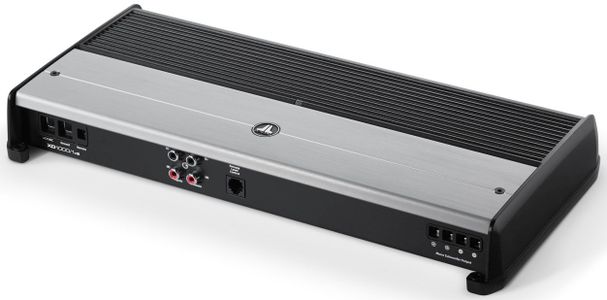

JL Audio® Class D Monoblock Subwoofer

This potent monoblock subwoofer amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. The XD1000/1v2 is capable of delivering 1000 W of continuous power into a 2 ohm load (14.4V, 1% THD), making it a great choice to drive higher power subwoofer systems.

Designed specifically for subwoofer applications, the XD1000/1 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz and a defeatable infrasonic filter (30 Hz, 24 dB/oct.). The XD1000/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Rated Continuous (RMS) Power @ 14.4 V

• @ 4 Ω: 600 W RMS x 1
• @ 3 Ω: 800 W RMS x 1
• @ 2 Ω: 1000 W RMS x 1

Rated Continuous (RMS) Power @ 12.5 V

• @ 4 Ω: 500 W RMS x 1
• @ 3 Ω: 650 W RMS x 1
• @ 2 Ω: 800 W RMS x 1

Specifications

• Frequency Response: 7 Hz - 500 Hz (+0, -1dB)
• S/N Ratio, referred to highest rated power: >83 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• S/N Ratio, referred to 1 W: >53 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
• Damping Factor @ 4 Ω: >1000 / 50 Hz
• Damping Factor @ 2 Ω: >500 / 50 Hz
• THD+N @ Rated Power: <1% @ 2 Ω per Ch.
• Input Voltage Range @ RCA Inputs: Switchable from 200 mV - 2 V RMS (Low) to 800 mV - 8 V RMS (High)
• Min. Copper Power / Ground Wire Gauge: 4 AWG wire
• Fuse Rating: 80 A (AFS, AGU or MaxiFuse™)

Signal Processing

• Filter Mode(s): Low-Pass only
• Filter Slope(s): 12/24 dB/octave
• Filter Frequency Range: 50 Hz - 500 Hz
• Detented, Calibrated Filter Freq. Potentiometer: Yes
• Filter Defeat Function: Yes
• Infrasonic Filter: 30 Hz, defeatable
• Remote Subwoofer Level Control: Optional (HD-RLC)
• Pass-Through Preamp Output: Buffered
