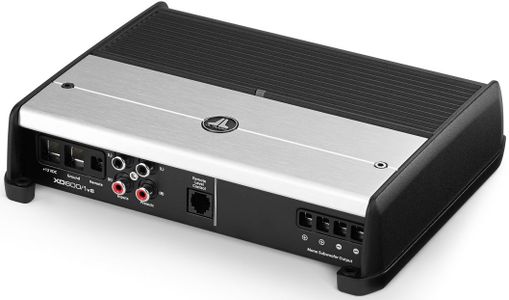

JL Audio® Class D Monoblock Subwoofer Amplifier

Model #: XD600-1v2

At a Glance

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).

WarningProposition 65 Warning for California Residents
JL Audio® Class D Monoblock Subwoofer Amplifier

Connections

Analog Audio(RCA) Input1

General Specs

ColorBlack
Depth (in.)7.09
Width (in.)8.52
Height (in.)2.05
Amplifier ClassClass D
Bluetooth CapableNo
Amplifier ChannelsMono Block
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputNo
Product Weight (lbs.)6.3

JL Audio® Class D Monoblock Subwoofer Amplifier

Model #: XD600-1v2
136768
JL Audio

Call for Best Price

At a Glance

This potent monoblock amplifier employs our high-speed NexD™ switching design to achieve unprecedented efficiency and amazing power output in a very compact chassis. Don't let the small size fool you, though... this amplifier is capable of serious subwoofer power, delivering a full 600 W of continuous power into a 2 ohm load (14.4V, 1% THD).

People also viewed:

Get to know this product.

Targeted specifically for subwoofer applications, the XD600/1v2 includes a variable slope low-pass filter with continuously variable cutoff frequency selection from 50-500 Hz.

The XD600/1v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat. This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Frequency Response: 7 Hz - 500 Hz (+0, -1dB)

Damping Factor: >1000 @ 4 ohms / 50 Hz >500 @ 2 ohms / 50 Hz

Class D

Useful Documents
Specifications

General Specs

ColorBlack
Depth (in.)7.09
Width (in.)8.52
Height (in.)2.05
Amplifier ClassClass D
Bluetooth CapableNo
Amplifier ChannelsMono Block
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputNo
Product Weight (lbs.)6.3

Connections

Analog Audio(RCA) Input:1
