JL Audio® 8" Midbass Driver

At a Glance

Our reference quality ZR component speakers are made for those seeking the highest possible levels of audio performance and are the pinnacle of the JL Audio component speaker lineup.

Proposition 65 Warning for California Residents

People also viewed:

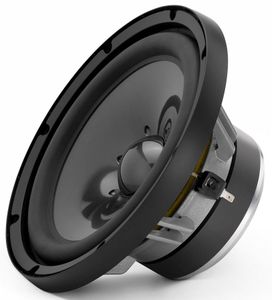

The ZR800-CW is a supremely powerful, dedicated mid-bass driver designed for infinite-baffle or door-mounted custom installations. This potent driver benefits from JL Audio's vast woofer design experience and advanced modeling systems and is capable of operating down into the sub-bass range, if needed. Upper frequency response extends comfortably to 1 kHz.

The long linear excursion design keeps distortion low while unleashing the full dynamics of the most powerful listening material.

A woofer grille is included, consisting of a black grille tray and a black steel mesh grille with an electroformed "ZR" logo

When nothing but the best will do, choose ZR

Sonic character: Accurate and detailed

Sold individually

Dimensions

Nominal Diameter: 8.0 in / 200 mm

Frame Outer Diameter: 8.26 in / 209 mm

Motor Outer Diameter: 4.54 in / 115 mm

Frontal Grille Protrusion: 1.17 in / 30 mm

Mounting Hole Diameter: 7.125 in / 181 mm

Mounting Depth: 3.39 in / 86 mm

Driver Displacement: 0.016 cu ft / 0.44 L

Parameters

Free Air Resonance (Fs): 46.27 Hz

Electrical “Q” (Qes): 0.702

Mechanical “Q” (Qms): 11.667

Total Speaker “Q” (Qts): 0.662

Equivalent Compliance (Vas): 0.787 cu ft / 22.29 L

One-Way Linear Excursion (Xmax): 0.34 in / 9 mm

Efficiency (1 W / 1 m): 87.0 db SPL

Effective Piston Area (Sd): 33.34 sq in / 0.0215 sq m

DC Resistance (Re): 3.935 Ω
