Product Dimensions 2.12"h x 9.02"w x 6.62"d
The C3-650 system features 6.5-inch (165 mm) component woofers with oversized 1.2-inch (30.5 mm) voice coils, mineral-filled polypropylene cones and injection-molded polymer baskets.Read More
Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

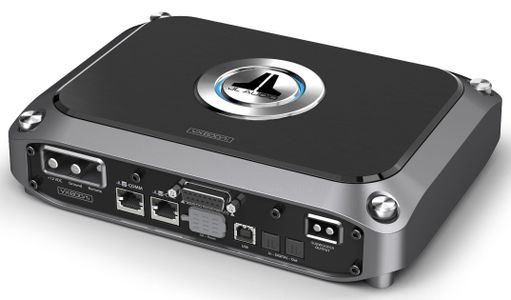

The VX600/1i monoblock subwoofer amplifier outputs up to 400 watts into 4 ohms, or a staggering 600 watts into 2 ohms. A specialized, low-frequency version of our NexD2™ amplifier technology delivers rock-solid bass performance and fidelity, with outstanding efficiency. Compact dimensions with all connections placed on one side, via mating plugs, greatly simplify installation into tight spaces.
Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.
Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Subwoofer Output Connector, 6 ft A/B USB Cable
Frequency Response: 12 Hz - 500 Hz (+0, -1dB)
THD+N @ Rated Power: <1% @ 2 O per Ch.
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
General Specs | |
| Color | Black |
| Depth (in.) | 6.62 |
| Width (in.) | 9.02 |
| Height (in.) | 2.12 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 600 |
| Bluetooth Capable | No |
| Amplifier Channels | Mono Block |
| Manufacturer Warranty | 2 Years |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 600 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | Yes |
| Speaker Level Input | No |
| Number Of Outputs | 2 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 2 |
| Product Weight (lbs.) | 5 |
