Product Dimensions 1.77"h x 9.33"w x 4.5"d

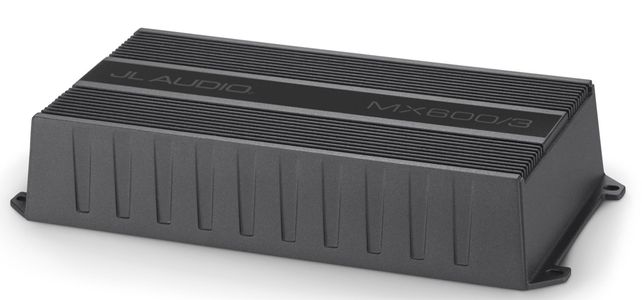

Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems.Read More
Engineered specifically for powersports applications, the 3-channel MX600/3 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum housing is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a potent 75W x 2 into 4 ohms, plus a solid 400 watts for a subwoofer system, the MX600/3 makes a great all-in-one solution for driving a complete audio system from a single, ultra-compact chassis.
Onboard filters include a 12 dB / octave high-pass crossover on the main channels and a dedicated 24 dB / octave low-pass crossover for the subwoofer channel. Other features include a bass boost EQ, variable infrasonic filter and subwoofer output polarity switch. A dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Frequency Response: 20 Hz - 20 kHz (+0, -1dB)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 60 A (AFS, AGU or MaxiFuse™)
General Specs | |
| Color | Black |
| Depth (in.) | 4.5 |
| Width (in.) | 9.33 |
| Height (in.) | 1.77 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 600 |
| Bluetooth Capable | No |
| Amplifier Channels | 3 |
| Manufacturer Warranty | 2 Year |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 400 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | Yes |
| Number Of Outputs | 1 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 1 |
