Product Dimensions 1.77"h x 9.33"w x 4.5"d

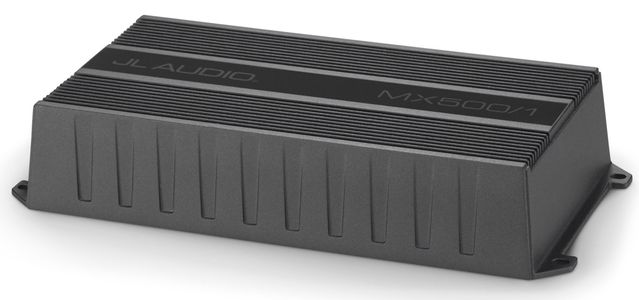

Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems.Read More
Engineered specifically for powersports applications, the MX500/1 monoblock amplifier employs our high-speed NexD™ switching design to pack a serious audio punch, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
With a robust 500W of clean power into a 2-ohm load (14.4V, 1% THD), use one to drive a subwoofer, or grab a pair to deliver stunning output to a subwoofer system. The MX500/1 also features an adjustable low-pass crossover, a bass boost EQ, variable infrasonic filter and output polarity switch.
Its dual-range input section accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals. With the addition of an M-RBC-1 remote level control (sold separately), subwoofer output can be directly controlled from the driver’s seat.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Frequency Response: 20 Hz - 12 kHz (+0, -1dB)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
General Specs | |
| Color | Black |
| Depth (in.) | 4.5 |
| Width (in.) | 9.33 |
| Height (in.) | 1.77 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 500 |
| Bluetooth Capable | No |
| Amplifier Channels | Mono Block |
| Manufacturer Warranty | 2 Year |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 500 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 1 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 1 |
