Product Dimensions 1.77"h x 9.33"w x 4.5"d

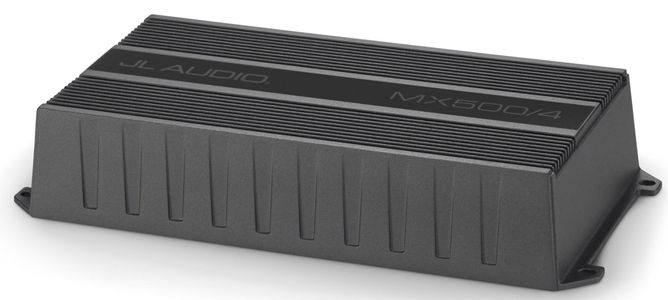

Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems.Read More
Engineered specifically for powersports applications, the 4-channel MX500/4 amplifier employs our high-speed NexD™ switching design to deliver plenty of clean power, without straining charging systems. Its tiny, cast aluminum chassis is highly resistant to corrosion, with an IPX7 water-resistance rating, making it perfect for motorcycles, ATV’s or other utility vehicles.
Generating a solid 70W x 4 into 4 ohms (14.4V, 1% THD), the MX500/4 is fully bridgeable, so it can be used as a 3-channel amplifier, or as a 2-channel amplifier producing a potent 250W x 2 into 4 ohms.
Other features include independent front and rear crossovers with selectable full-range, high-pass or low-pass filter controls and a dual-range input section that accepts a wide range of input voltage levels, from line-level all the way to high-power speaker level signals.
This amplifier features a rugged powder-coated finish, a gasketed cover for the controls and stainless steel hardware for durability.
Frequency Response: 20 Hz - 20 kHz (+0, -1dB)
Min.Copper Power / Ground Wire Gauge: 4 AWG wire
Fuse Rating: 50 A (AFS, AGU or MaxiFuse™)
General Specs | |
| Color | Black |
| Depth (in.) | 4.5 |
| Width (in.) | 9.33 |
| Height (in.) | 1.77 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 500 |
| Bluetooth Capable | No |
| Amplifier Channels | 4 |
| Manufacturer Warranty | 2 Year |
| Impedance | 2 - 4 Ohms |
| RMS Power Handling (Watts) | 250 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 1 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 1 |
