JL Audio® 5 x 7 / 6 x 8" Convertible Component Woofer

Model #: C3-570cw

At a Glance

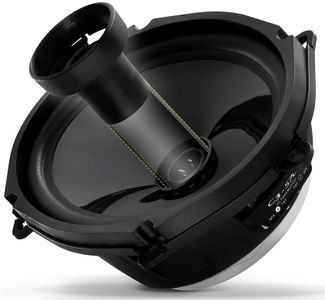

The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer capable of accurate reproduction between 48 Hz and 5 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

WarningProposition 65 Warning for California Residents
JL Audio® 5 x 7 / 6 x 8" Convertible Component Woofer

Construction

Woofer CompositionMineral Filled Polypropylene

Specifications

Maximum Power Handling225W
Sensitivity90.0 dB @ 1 W / 1 m

Misc. Specs

Woofer Size5 x 7" / 6 x 8"
Manufacturer Warranty1 Year
RMS Power Handling (Watts)75
Peak Power Rating (Watts)225
Shallow MountNo

JL Audio® 5 x 7 / 6 x 8" Convertible Component Woofer

Model #: C3-570cw
Call for Best Price

At a Glance

The C3-570cw is a 5 x 7 / 6 x 8-inch (125 x 180 mm) component woofer capable of accurate reproduction between 48 Hz and 5 kHz. It features a mineral-filled polypropylene cone and an injection-molded polymer basket. The woofer design benefits from JL Audio's vast woofer design experience and advanced modeling systems.

People also viewed:

Get to know this product.

No grille is available for this woofer

Sonic character: Clean and Powerful

Sold individually

Recommended Amplifier Power (RMS): 25 - 150 W / Ch.

System Efficiency: 90.0 dB @ 1 W / 1 m

System Frequency Response: 48 Hz - 5 KHz ± 3 dB

Dimensions

Frame Outer Diameter: 5.52 x 7.68 in / 140 x 195 mm

Motor Outer Diameter: 4.08 in / 104 mm

Frontal Coaxial Tweeter Protrusion: 0.78 in / 20 mm

Mounting Depth: 2.52 in / 64 mm

Useful Documents
Specifications

Construction

Woofer Composition:Mineral Filled Polypropylene

Specifications

Maximum Power Handling:225W
Sensitivity:90.0 dB @ 1 W / 1 m

Misc. Specs

Woofer Size5 x 7" / 6 x 8"
Manufacturer Warranty1 Year
RMS Power Handling (Watts)75
Peak Power Rating (Watts)225
Shallow MountNo
