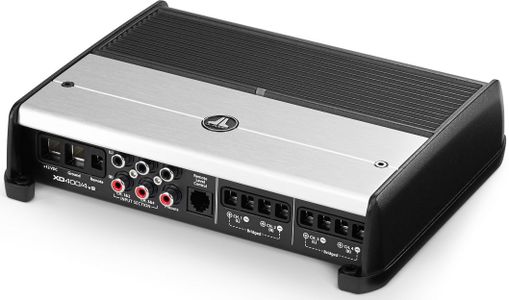

JL Audio® 4 Channel Class D Full-Range Amplifier

Model #: XD400-4v2

At a Glance

4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 O / 75 W x 4 @ 4 O - 14.4V. This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

WarningProposition 65 Warning for California Residents
JL Audio® 4 Channel Class D Full-Range Amplifier

Misc. Specs

ColorBlack/Silver
Depth (in.)7.09
Width (in.)8.52
Height (in.)2.05
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)400
Bluetooth CapableNo
Amplifier Channels4
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
RMS Power Handling (Watts)200
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputNo
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Product Weight (lbs.)4.75

JL Audio® 4 Channel Class D Full-Range Amplifier

Model #: XD400-4v2
Call for Best Price

At a Glance

4-Channel Class D Full-Range Amplifier, 100 W x 4 @ 2 O / 75 W x 4 @ 4 O - 14.4V. This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.

People also viewed:

Get to know this product.

Use the XD400/4v2 in combination with our XD600/1 monoblock to build a 1000 W amplification system to power four satellites and a subwoofer... and fit the whole thing under a seat. Or, use the XD400/4v2 by itself to power two satellites, plus a subwoofer. With XD's, the possibilities are endless.

The XD400/4v2 includes a 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.

The XD400/4v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.

This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.

Useful Documents
Specifications

Misc. Specs

ColorBlack/Silver
Depth (in.)7.09
Width (in.)8.52
Height (in.)2.05
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)400
Bluetooth CapableNo
Amplifier Channels4
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
RMS Power Handling (Watts)200
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputNo
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
Product Weight (lbs.)4.75
