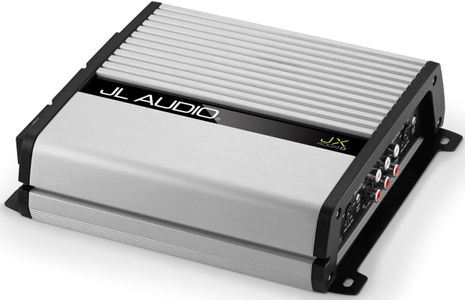

JL Audio® 4 Channel Class D Full-Range Amplifier

Model #: JX400-4D

At a Glance

The JX400/4D employs a highly-efficient Class D design with a robust MOSFET power supply to deliver a strong 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). Use the JX400/4D in combination with our JX500/1D or JX1000/1D monoblocks to build an amazing amplification system at a very affordable price. Or, use the JX400/4D by itself to power two satellites, plus a subwoofer. The JX400/4D includes a defeatable 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

WarningProposition 65 Warning for California Residents
JL Audio® 4 Channel Class D Full-Range Amplifier

General Specs

Depth (in.)7.68
Width (in.)9.05
Height (in.)2.15
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)400
Bluetooth CapableNo
Amplifier Channels4
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
RMS Power Handling (Watts)200
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputYes
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs4
Product Weight (lbs.)4.80

JL Audio® 4 Channel Class D Full-Range Amplifier

Model #: JX400-4D
136858
Model #: JX400-4D
JL Audio
$99,999.00

Call for Best Price

At a Glance

The JX400/4D employs a highly-efficient Class D design with a robust MOSFET power supply to deliver a strong 100 watts to each of its four channels into 2 ohms (14.4V, 1% THD). Use the JX400/4D in combination with our JX500/1D or JX1000/1D monoblocks to build an amazing amplification system at a very affordable price. Or, use the JX400/4D by itself to power two satellites, plus a subwoofer. The JX400/4D includes a defeatable 12 dB / octave filter for each channel bank, which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-200 Hz. Dedicated hi-level inputs are included, in addition to conventional low-level RCA inputs, making it easy to integrate with a variety of OEM and aftermarket head units.

People also viewed:

Get to know this product.

Frequency Response: 20 Hz - 20 kHz (+0, -1dB)

S/N Ratio, referred to highest rated power: >93 dB below rated power (A-weighted, 20 Hz - 20 kHz noise bandwidth)

Min. Copper Power / Ground Wire Gauge: 4 AWG wire

Useful Documents
Specifications

General Specs

Depth (in.)7.68
Width (in.)9.05
Height (in.)2.15
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)400
Bluetooth CapableNo
Amplifier Channels4
Impedance2 - 4 Ohms
Manufacturer Warranty2 Year
RMS Power Handling (Watts)200
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputYes
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs4
Product Weight (lbs.)4.80
