Product Dimensions 2.36"h x 13.40"w x 9.25"d

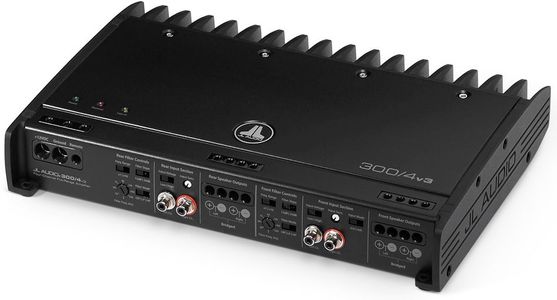

If you prefer a traditional Class A/B design taken to its highest possible level, the 300/4v3 is your amplifier, thanks to its outstanding fidelity, reliability and well-designed feature set.Read More
If you prefer a traditional Class A/B design taken to its highest possible level, the 300/4v3 is your amplifier, thanks to its outstanding fidelity, reliability and well-designed feature set.
This classic amplifier features JL Audio's unique, and patented, Absolute Symmetry Class A/B circuit and our R.I.P.S. power supply design for full power delivery (75 W x 4) over a wide range of load impedances and vehicle voltages.
This amplifier features an all-black look that is pure, sexy evil, including the powder-coated cast alloy heat sink and end caps.
Frequency Response: 5 Hz - 30 kHz (+0, -1dB)
Damping Factor @ 4 O: >300 / 50 Hz
THD+N @ Rated Power: <0.03% @ 4 O per Ch.
General Specs | |
| Depth (in.) | 9.25 |
| Width (in.) | 13.40 |
| Height (in.) | 2.36 |
| Amplifier Class | Class AB |
| Amplifier Output (Watts) | 300 |
| Bluetooth Capable | No |
| Amplifier Channels | 4 |
| Manufacturer Warranty | 2 Year |
| Impedance | 3 - 4 Ohms |
| RMS Power Handling (Watts) | 150 |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 4 |
| Minimum Impedance Unbridged | 2 Ohm |
| Number Of Inputs | 2 |
