Product Dimensions 1.93"h x 10.74"w x 8.29"d

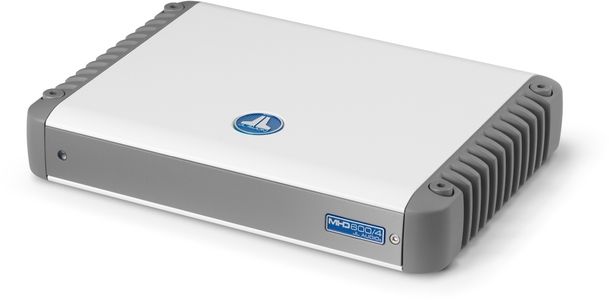

The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.Read More
This compact, multi-channel powerhouse employs our Single-Cycle Control switching design and R.I.P.S. technology to deliver 150 W x 4 or 300 W x 2. Tight power supply regulation keeps distortion down and maximizes sound quality.
The MHD600/4-24V is the ideal satellite amplifier, delivering huge dynamics with pristine resolution. It can also be deployed, on its own, as a very capable 3-channel system amplifier with 150W x 2 to the satellites and 300W x 1 to a subwoofer system.
This marine amplifier features white and gray powder-coat finishes, a gasketed cover for the controls and stainless steel hardware for durability in the marine environment.
This amplifier is designed for operation in vessels with 24 volt, negative-ground electrical systems. Use of this product in vessels with positive ground and/or voltages other than 24 V may result in damage to the product and will void the warranty.
150 W x 4 @ 1.5-4 O
Gasketed cover for the controls and stainless steel hardware
White and gray powder-coat finishes
For 24V systems only
General Specs | |
| Color | White |
| Depth (in.) | 8.29 |
| Width (in.) | 10.74 |
| Height (in.) | 1.93 |
| Preamp Outputs | 1 |
| Amplifier Class | Class D |
| Amplifier Output (Watts) | 600 |
| Bluetooth Capable | No |
| Amplifier Channels | 4 |
| Manufacturer Warranty | 2 Year |
| Impedance | 1.5 - 8 Ohms |
| RMS Power Handling (Watts) | 300 |
| Water Resistant | No |
| Shallow Mount | No |
| Digital Input | No |
| Speaker Level Input | No |
| Number Of Outputs | 4 |
| Minimum Impedance Unbridged | 1.5 Ohm |
| Number Of Inputs | 2 |
