Paradyme

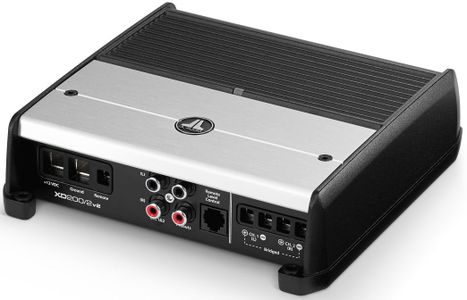

JL Audio® 2 Channel Class D Full-Range Amplifier
Model #: XD200-2v2
At a Glance
2-Channel Class D Full-Range Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V. This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Proposition 65 Warning for California Residents
General Specs
| Color | Black |
|---|---|
| Depth (in.) | 7.09 |
| Width (in.) | 6.85 |
| Height (in.) | 2.05 |
| Amplifier Class | Class D |
| Bluetooth Capable | No |
| Amplifier Channels | 2 |
| Manufacturer Warranty | 2 Year |
| Water Resistant | No |
| Digital Input | No |
| Shallow Mount | No |
| Speaker Level Input | No |
| Product Weight (lbs.) | 3.75 |
JL Audio® 2 Channel Class D Full-Range Amplifier
Model #: XD200-2v2
136774
Model #: XD200-2v2
JL Audio
$99,999.00
Call for Best Price
At a Glance
2-Channel Class D Full-Range Amplifier, 100 W x 2 @ 2 Ω / 75 W x 2 @ 4 Ω - 14.4V. This tiny amplifier packs a serious full-range punch, delivering a staggering 100 watts per channel into 2 ohms (14.4V, 1% THD). The breakthrough that makes this much power possible in such a small chassis is our NexD™ ultra-high-speed switching design, which allows for full bandwidth Class D operation with extremely low distortion and outstanding efficiency.
Get to know this product.
The XD200/2v2 includes a 12 dB / octave filter which can be configured as a low-pass or high-pass filter and offers continuously variable cutoff frequency selection from 50-500 Hz.
The XD200/2v2 also features the v2 Spec feature set, which consists of automatic turn-on capability (via signal sensing or DC-offset sensing), and a dual-range differential-balanced input section able to handle a wide range of input voltage levels. With the addition of an HD-RLC remote level control (sold separately), the amplifier's level can be directly controlled from the driver's seat.
This amplifier features a black powder-coat finish and a gasketed, brushed aluminum cover for the controls.
