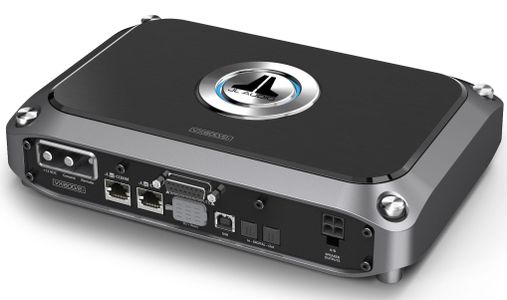

JL Audio® 2 Ch 600 W Class D Full-Range Amplifier with Integrated DSP

Model #: VX600/2i

At a Glance

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

WarningProposition 65 Warning for California Residents
JL Audio® 2 Ch 600 W Class D Full-Range Amplifier with Integrated DSP

General Specs

ColorBlack
Depth (in.)6.62
Width (in.)9.81
Height (in.)2.12
Amplifier ClassClass D
Amplifier Output (Watts)600
Bluetooth CapableNo
Amplifier Channels2
Impedance2 - 4 Ohms
Manufacturer Warranty2 Years
RMS Power Handling (Watts)600
Water ResistantNo
Digital InputYes
Shallow MountNo
Speaker Level InputNo
Number Of Outputs2
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2

JL Audio® 2 Ch 600 W Class D Full-Range Amplifier with Integrated DSP

Model #: VX600/2i
460300
Model #: VX600/2i
JL Audio
$99,999.00

Call for Best Price

At a Glance

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

Get to know this product.

2-Channel Class D Full-Range Amplifier with Integrated DSP, 300 W x 2 @ 2 O / 180 W x 2 @ 4 O - 14.4V

Designed to simplify great audio, every VXi amplifier combines our advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.

With our second-generation NexD2™ technology, the VX600/2i full-range amplifier outputs up to 180 watts per channel into 4 ohms, or a powerful 300 watts into 2 ohms. It can also be bridged into 4 ohms to generate a stunning 600 W x 1.

The NexD2™ full-range technology in this amplifier is DSP-controlled and features a reduced loop area design utilizing DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, to greatly simplify installation into tight spaces.

Instead of traditional control knobs and switches, all amplifier adjustments and DSP functionality are configured via a compatible external device (PC, Tablet or Smartphone), with the appropriate JL Audio TüN™ Software application installed.

Amplifier includes: Power Connector (for 4 AWG wire), Analog Input/Pre-Out Harness, Speaker Output Harness, 6 ft A/B USB Cable

Frequency Response: 12 Hz - 24 kHz (+0, -1dB)

THD+N @ Rated Power: <1% @ 2 O per Ch.

Input Voltage Range @ RCA Inputs: 200 mV - 16 V RMS

Useful Documents
Specifications

General Specs

ColorBlack
Depth (in.)6.62
Width (in.)9.81
Height (in.)2.12
Amplifier ClassClass D
Amplifier Output (Watts)600
Bluetooth CapableNo
Amplifier Channels2
Impedance2 - 4 Ohms
Manufacturer Warranty2 Years
RMS Power Handling (Watts)600
Water ResistantNo
Digital InputYes
Shallow MountNo
Speaker Level InputNo
Number Of Outputs2
Minimum Impedance Unbridged2 Ohm
Number Of Inputs2
