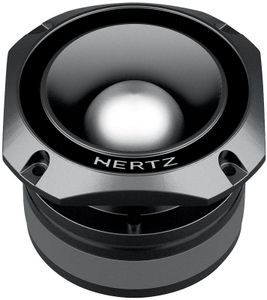

Hertz SPL Show 1.7" Comp High Efficiency Compression Driver


Model #:

ST 44

Model #: ST 44
87562
Hertz
$99,999.00

At a Glance

Hertz SPL Show 1.7" Comp High Efficiency Compression Driver with flux ferrite magnet and aluminium membraneRead More

Call for Best Price

People also viewed:

Get to know this product.

Product Overview

Product Overview

The ST 44 car audio compression driver, like the ST 25 and the ST 35, employs a CCAR (Copper Clad Aluminium Ribbon) voice coil featuring an extra-light aluminium membrane with high thermal dissipation as well as an anodized aluminium body, for maximum damping and vibration rejection. It additionally features a 44 mm (1.7 in.) voice coil and a powerful ferrite magnet, creating maximum SPL in extreme installations.

High magnetic permeability plates provide constant, even flux.

High density flux ferrite magnet, for top SPL performance.

CCAR (Copper Clad Aluminium Ribbon) voice coil; for unheard-of thermal and mechanical capability

Extralight aluminium membrane

Anodized aluminium body; for maximum damping and vibration rejection

High current, tin-plated terminals.

High efficiency compression loading horn.

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Height (in.)2.9
Product Weight (lbs.)3.4
Car Speaker SizeTweeter
Mounting Hardware IncludedYes
Water ResistantNo
Peak Power Rating (Watts)100

Dimensions

Width:4.5
Depth:4.5

Specifications

Maximum Power Handling:100
Sensitivity:109 dB

Styling

Color:Black
