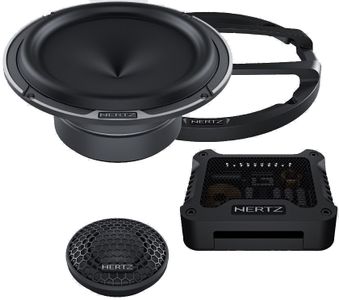

Hertz Mille Legend Black Car Audio Package

Product Overview

“Hi-Contour” two-position control, to select the tweeter hi-pass crossover point according to the tweeter position/angle towards the listener.

Three terminals for tweeter level adjustment in 2 dB steps, to fine-tune the transducer’s emission.

Extremely high quality bi-metallized 160V polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.

Air wound built on pure copper-wire copper-wire with up to 1mm diameter, for high saturation threshold of the magnetic flux and low losses on the woofer section where high transient currents are demanded.

High power rating wire wound resistors, to ensure performance stability even at high operating temperature. The wire wound build construction grants low parasitic series inductance thus reducing losses at high frequencies, especially for resistors in series to the tweeter.

The woofer originates from the ML 1650.3 Legend, inheriting all its technologies such as the Boundary Free Surround, the V-cone profile Pressed-pulp cone with cotton fibers, the six spoke aluminum basket with vented holes; however, it has been designed employing a high density ferrite magnet assembly, characterizing its emission in the mid frequency range. The woofer originates from the ML 1650.3 Legend, inheriting all its technologies such as the “Boundary Free Surround”, the V-cone® profile Pressed-pulp cone with cotton fibers, the three spoke aluminum basket with vented holes; however, it has been designed employing a high density ferrite magnet assembly, characterizing its emission in the mid frequency range.

The ML 28.3 Legend tweeter mounts the same Neodymium magnet assembly as the ML 280.3 Legend’s and features all the optimizations made with FEA methods on the dome profile, and that it shares with its “older brother”, except for the most esoteric features such as the die-cast aluminum faceplate, the CNC machined body made from solid aluminum block and the copper short circuit ring. Like MLCX 2 TW.3, also the MLCX 165.3 crossover features the “Hi-Contour” control to adjust the ML 28.3 tweeter cut-off frequency and so the cross-point with the ML 165.3 woofer, according to the position of the two speakers in the car. Through the tweeter three position level control, with 2 dB step attenuation, the level for a correct timbre balance can be fine-tuned according to one’s own tastes.
