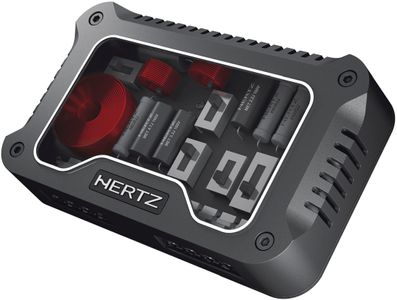

Hertz Mille Legend Black 2 Channel Car Audio Crossover

Product Overview

Bi-amplification available, selectable through appropriate hi-current rating switch with hi-current carrying capability.

“Mid-Contour” two-position control, for a linear mid-bass frequency response according to the woofers position in the car and the listener’s favorite sound.

“Hi-Contour” two-position control, to select the tweeter hi-pass crossover point selection according to the tweeter position/angle towards the listener.

“Mid-Contour” in conjunction with “Hi-Contour” provides the ability to use MLCX 2 TW.3 to build a two way system based on ML 1650.3 or ML 1800.3 woofer together with ML 280.3 tweeter.

Three-position switch for tweeter level adjustments in 2 dB steps, to fine-tune the transducer’s emission.

“Hi-Boost” control, selectable through appropriate switch, to provide better linearity of the tweeter emission above 10kHz when positioned not on axis to with the listener.

Extremely high quality bi-metallized 160V polyester film capacitors with ultra-low DF, for maximum sound transparency and neat mid/hi-frequencies.

Air wound inductors built on pure copper-wire with up to 1mm diameter, for high saturation threshold of the magnetic flux and low losses on the woofer section where high transient currents are demanded.

High power rating wire wound resistors, to ensure performance stability even at high operating temperature.

The significant power increase with this configuration highlights all the features of the MLK 1650.3 Legend system, with all the advantages coming from the multi-amplification. Besides, thanks to the Mid-Contour and Hi-Contour controls, dedicated to the management of woofer cut-off frequency and tweeter cut-off frequency respectively, the cross-point can be varied.
