Paradyme

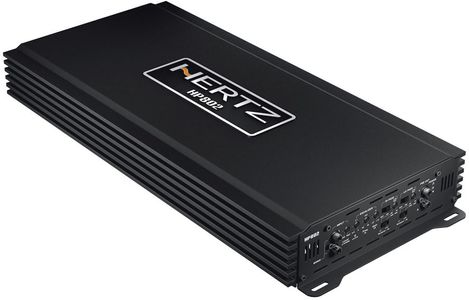

HP 802 is an AB Class stereo spl car audio amplifier, able to deliver up to 1800W. The power supply stage is overbuilt featuring components selected for their robustness, efficiency and reliability even for extended time operation.
Color | Black |
---|---|
Depth (in.) | 9.45 |
Width (in.) | 21.41 |
Height (in.) | 2.55 |
Amplifier Class | Class AB |
Color Finish Name | Black |
Amplifier Channels | 2 |
Impedance | 4 Ohms |
Collection | HP |
Product Weight (lbs.) | 16.53 |
The AB-Class output stage provides stability into 1 Ω stereo or 2 Ω mono loads and features 20 - 10A/200V impulsive BJT: robust power and thermal dissipation without compromise.
By-passable Hi-Pass and Lo-Pass filter, separately activated or in combination to create a Band-Pass for each speaker.
Parametric equalizer with Q, frequency and gain control, to optimize each speaker’s response.
Full range pre output to relaunch the signal to other amplifiers in a multiamplifier system.
In order to deliver such extraordinarily high power and to transfer it uninterruptedly, the power supply stage features multiple toroidal transformers, 105° Low ESR primary capacitors, TO247 Mosfets and large tank-type secondary capacitors.
Color | Black |
Depth (in.) | 9.45 |
Width (in.) | 21.41 |
Height (in.) | 2.55 |
Amplifier Class | Class AB |
Color Finish Name | Black |
Amplifier Channels | 2 |
Impedance | 4 Ohms |
Collection | HP |
Product Weight (lbs.) | 16.53 |
