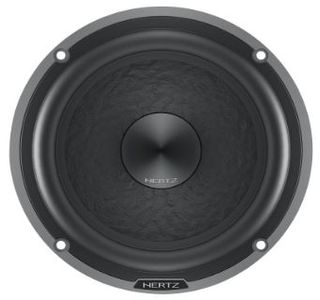

Hertz Hi-Energy Comp 6.5" Woofer


Model #:

HV 165L

Model #: HV 165L
87484
Hertz
$99,999.00

At a Glance

Hertz Hi-Energy Comp 6.5" Woofer with aerodynamic die-cast aluminium basket and over-sized magnetRead More

Request a Quote

Get to know this product.

Product Overview

Product Overview

HV 165L car audio woofers has performance-enhancing properties. An oversized magnet and a voice coil wound on a KSV former ensure maximum control of the mobile group assembly and excellent thermal and mechanical capability. Their non-pressed paper cones with cotton fibers improve energy transfer at low and mid frequencies thanks to the special density of the material they consist of. The introduction of V-coneĀ®, the aerodynamic die-cast aluminium basket and the innovative Radial Venting System make it a reference product for power handling, high efficiency and timbre quality. The best choice for multi-way, multi-amplified installations, with or without subwoofers, and for high dynamics systems.

Polar plates of soft iron for high thermal dissipation , integral parts of a motor unit designed to provide a symmetrical magnetic flux.

Oversized magnet to ensure the necessary energy for the mobile unit control.

Pure copper coil wound on a KSV for exceptional thermal and mechanical seal.

Less polar perforated plate to improve the linearity of excursion and the thermal dissipation.

Cone in cellulose pulp and cotton fibers for a powerful and dynamic response in the low frequency.

V - coneĀ® for the best acoustic dispersion and detail at medium-high range.

Coverage of the anti - vibration rubber magnet to dampen the spurious vibrations.

Aerodynamic cast aluminum basket to eliminate obstacles to the issue back of the membrane.

Radial Venting System , radial cooling system for the efficient management of the operating temperature.

Rubber polymer suspension without loss to a very good damping even at high excursions.

Useful Documents
Specifications

General Specs

Depth (in.)6.57
Height (in.)3.11
Impedance4 Ohms
Product Weight (lbs.)2.6
RMS Power Handling (Watts)100
Peak Power Rating (Watts)200
Shallow MountNo

Dimensions

Width:6.57

Specifications

Maximum Power Handling:200
Sensitivity:92 dB

Styling

Color:Black
