This Subwoofer has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes.

JL Audio® 8" Subwoofer Driver

10th Anniversary Edition - W7 8-inch Subwoofer (500 W, 3 O)

This Subwoofer has been called the "best damn 8-inch subwoofer ever made" for its remarkable performance capabilities and design attributes. An impressive linear excursion envelope that exceeds 0.75 in. (19 mm) one-way allows it to deliver impact well beyond the range of other 8-inch Subwoofers.

The 8W7AE is best used with amplifier power in the 200W - 500W range and is optimized to operate in a 0.875 cu. ft. (24.8 l) sealed enclosure, or a 1.0 cu. ft. (28.3 l) ported enclosure. Detailed enclosure recommendations can be found in the "Specifications" tab.

W7AE (Anniversary Edition) Subwoofers celebrate the 10th Anniversary of the launch of the W7 subwoofers. Functionally, they are identical to the original W7's, but are they distinguished by the following cosmetic differences:

Sensitivity:

With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered

JL Audio® Single 8W3v3 MicroSub+™ Subwoofer System

By combining direct power conversion with an ultra-high current output section, DCD™ amplifiers are free of conventional switching power supplies, enabling them to generate remarkable power with unprecedented efficiency.

Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its 8Wv3 subwoofer driver. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.

Integration to OEM and aftermarket head units is a snap thanks to a variety of input options and automatic turn-on capability (via signal sensing or DC offset sensing). Also included is a variable frequency low-pass filter (50-200 Hz), along with output polarity control switch. Adding an optional RBC-1 remote level control (sold separately) lets you control subwoofer levels directly from the driver’s seat. A quick-disconnect power connector makes it easy to remove the subwoofer when you need the extra space. As with all MicroSub™ systems, these amplified versions produce the kind of output and extension normally associated with much larger systems.

Note: DCD™ amplified systems use very specific components. Never use a DCD™ amplifier or its companion subwoofer(s) with incompatible, non-DCD™ products. Doing so will void the warranty and may cause severe damage.

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. A steel mesh grille is included to protect the subwoofer driver.

Amplifier power: Built-in DCD™ Class D amplifier (250 W @ 0.40 O)

Enclosure and Subwoofer Built in USA with global components

Continuous Power Handling (RMS): Built-in amplifier 250 W @ 0.40 O

Input Voltage Range @ RCA Inputs: 70 mV - 1.40 V RMS

Input Voltage Range @ High-Level Inputs: 280 mV - 5.4 V RMS

Recommended Copper Power / Ground Wire Gauge: 8 AWG wire

Remote Subwoofer Level Control: Optional (RBC-1)

With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 driver.

Enclosure Type:

Frequency Response:

JL Audio® Dual 8W3v3 MicroSub+™ Subwoofer System

Key to the enclosure’s performance is its efficient slot-ported design and precise tuning of its dual 8Wv3 subwoofer drivers, each in its separate airspace. Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through each port.

Finish: Black, high-grade automotive carpet with silver "JL AUDIO" embroidery on front baffle. Steel mesh grilles are included to protect the subwoofer drivers.

Amplifier power: Built-in DCD™ Class D amplifier (500 W @ 0.20 O)

Enclosure and Subwoofers Built in USA with global components.

Continuous Power Handling (RMS): Built-in amplifier 500 W @ 0.20 O

With MicroSub+™ systems, the power is built right into the subwoofer system. Housing a proprietary Class D amplifier, this incredible subwoofer system utilizes our exclusive DCD™ amplifier technology to extract maximum output from its specially engineered, ultra low-impedance W3v3 drivers.

This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 8W3v3 subwoofer driver into an efficient slot-ported

JL Audio® Single 8W3v3 MicroSub™ Subwoofer System

Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The flared port entry and exit further enhance sound quality by minimizing air-flow noises through the port.

This subwoofer system is shipped wired, loaded and ready to connect via a five-way binding post terminal.

This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its 8W3v3 subwoofer driver into an efficient slot-ported design.

Maximum Power Handling:

This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its dual 8W3v3 subwoofer drivers, each in separate airsp

JL Audio® Dual 8W3v3 MicroSub™ Subwoofer System

Extensive interior bracing permits the use of thinner wall material that maximizes the enclosure's internal volume relative to its exterior volume. The port for each driver wraps around two walls of the enclosure to produce the necessary low tuning frequency that ensures excellent extension and response smoothness. The two flared port entries/exits, one on each end of the enclosure, further enhance sound quality by minimizing air-flow noises through these ports.

This incredible MicroSub™ subwoofer system delivers the kind of output and extension that is normally possible with only much larger systems. The key to its performance lies in the precise tuning of its dual 8W3v3 subwoofer drivers, each in separate airspace, with an efficient slot-ported design.

HVT stands for Horizontal Vertical Transforming technology which transforms horizontal movement into vertical movement of a woofer diaphragm to produce true, powerful and wide-range bass.

Pioneer 8.25" HVT Sealed Active Subwoofer

Proprietary New Speaker Design Technology

The TS-WH500A amplified subwoofer system is a truly groundbreaking approach in loudspeaker design. HVT technology uses a unique linkage mechanism, which allows the magnet and voice coil of the dual motor structure to be positioned horizontally to the left and the right side of vertically moving dual speaker diaphragms. Combined, the two diaphragms have an effective surface area equal to a conventional 8" subwoofer and fire in a bipolar arrangement, increasing output while also canceling destructive vibrations within the enclosure. The result of this innovative technology is a subwoofer system with significantly reduced physical depth, while maintaining greater excursion and linearity for superior bass reproduction, natural sound quality and higher output.

The result of this innovative technology is a uniquely compact speaker with the most compact enclosure in the industry that combines woofer surface area equal to most other compact active subwoofer systems with greater maximum excursion for superior performance and sound quality. The HVT subwoofer will fit easily in a wide range of vehicle applications (compact and subcompact vehicles, hybrid vehicles, trucks and SUVs, etc.) without sacrificing performance or sound quality.

Compared to a traditional subwoofer, the TS-WH500A produces less vibration and less noise. The subwoofer offers wider low range frequency reproduction for well-balanced bass from various musical instruments. The voice coil and diaphragm work in symmetry to cancel unnecessary vibrations and reduce noise which instead would travel through the vehicle’s body.

Size

Cone Composition

Impedance

Sensitivity (IN CAR, INPUT: 1W)

Surround Composition

Frequency Response

87556/DBA_200-3.pdf

87556/DBA_200-32.jpg

87556/DBA_200-33.jpg

87556/DBA_200-31.pdf

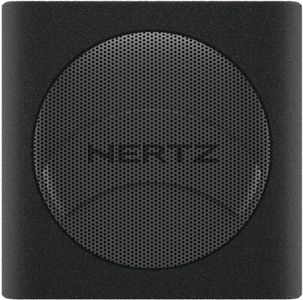

Hertz DBA 200.3 car audio subwoofer box is an active subwoofer system with a 200 mm (8 in.) subwoofer and two passive radiators of the same size, powered by a 140 W amplifier built-in to the back of the enclosure.

Hertz Dieci 8" Sub Box with dual speaker input and double passive radiator

General Specs
Color	Black
Depth (in.)	13
Width (in.)	11.6
Height (in.)	10.4
Impedance	4 Ohms
Product Weight (lbs.)	17.19
Specifications
Maximum Power Handling:	140
Sensitivity:	92 dB
Styling
Color:	Black

Hertz Dieci 8" Sub Box
