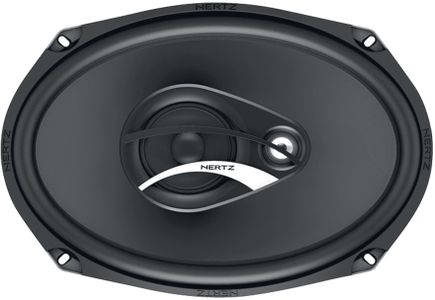

Hertz Dieci 6" x 9" 3-Way Coaxial


Model #:

DCX 690-3

Model #: DCX 690-3
87540
Hertz
$99,999.00

At a Glance

Hertz Dieci 6" x 9" 3-Way Coaxial with pure copper voice coil and silver-plated lead wiresRead More

Request a Quote

People also viewed:

Get to know this product.

Product Overview

Product Overview

An authentic 3-way coax capable of reproducing a wide frequency spectrum. The DCX 690.3 car audio coaxials uses an oversized magnetic group, TPU (Thermoplastic polyurethane) surround, a 60 mm diameter midrange and a PEI dome tweeter. The result is linearity, wide dispersion and extra-ordinary efficiency not found in traditional coax components. An involving, emotional sound, even at high SPL levels.

Power Handling - Peak W: 180

Power Handling - Continuous W: 90

Impedance ?: 4

Frequency response Hz: 45 ÷ 21k

Sensitivity dB SPL: 93

Voice coil Ø mm (in.): 25 (1.0

Woofer size mm (in.): (6.0 x 9.0)

Tweeter size mm (in.): 60 (2.5)

Woofer magnet: High density flux ferrite

Tweeter magnet: High density flux ferrite

Woofer cone: Water-repellent pressed paper

Tweeter dome: Water-repellent pressed paper

Useful Documents
Specifications

General Specs

Impedance4 Ohms
Manufacturer Warranty2 Year
Car Speaker Size6 x 9
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)90
Peak Power Rating (Watts)180
Shallow MountNo

Construction

Tweeter Composition:Dome

Dimensions

Width:9.3

Specifications

Maximum Power Handling:180
Sensitivity:93 dB

Styling

Color:Black
