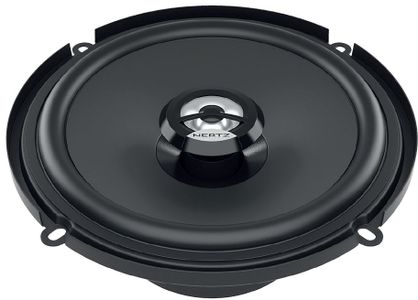

Hertz Dieci 6" Two-Way Coaxial Speaker

Model #: DCX160.3

At a Glance

To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability.

WarningProposition 65 Warning for California Residents
Hertz Dieci 6" Two-Way Coaxial Speaker

General Specs

Impedance4 Ohms
Car Speaker SizeAdditional Speaker Sizes
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)60
Peak Power Rating (Watts)120
Shallow MountNo

General

Power Handling - Peak W120
Power Handling - Continuous W60
Impedance Ω4
Frequency Response Hz50 ÷ 21k
Sensitivity dB SPL93
Woofer size mm (in.)160 (6)
Tweeter size mm (in.)15 (0.6)
Woofer Voice Coil Ø mm (in.)25 (1.0)
Woofer magnetHigh density flux ferrite
Tweeter magnetNeodymium
Woofer coneWater-repellent pressed paper

Hertz Dieci 6" Two-Way Coaxial Speaker

Model #: DCX160.3
300037
Model #: DCX160.3
Hertz
$99,999.00

Request a Quote

At a Glance

To meet all installation needs, without giving up on Hertz quality and performance, the Dieci coaxes were designed with maniacal care to provide a linear frequency response and ensure high reliability.

Get to know this product.

A Neodymium magnet, PEI dome tweeter, built-in crossover, TPU (Thermoplastic polyurethane) surround and a pressed-paper cone provide the optimum ratio between installation friendliness and sound with dynamic and emotional impact. The new Hertz Dieci DCX 160.3 6” coaxial includes an adaptor ring designed for installation in GM and Honda models with 6” OEM speakers.

1. Large motor assembly for mobile voice coil control.

2. Pure copper voice coil, wound on conex former, for maximum lightness.

3. Water-repellent treated paper cone.

4. TPU surround, for wide excursion and resonance damping.

5. Neodymium tweeter with PEI dome, for compactness and energy at high frequencies.

6. DIN size basket protected by abrasion-proof dust paint.

7. Tin-plated, high current terminals.

8. Silver-plated lead wires for maximum reliability and conductivity.

9. Butyl rubber protective cover, against crashes and abrasions.

10. Epoxy glue for basket and motor system provides perfect coupling.

11. Low carbon content plates for maximum magnetic permeability and high heat dissipation.

12. Provided adaptor ring designed for installation in GM and Honda models with 6”.

Specifications

General Specs

Impedance4 Ohms
Car Speaker SizeAdditional Speaker Sizes
Mounting Hardware IncludedYes
Water ResistantNo
RMS Power Handling (Watts)60
Peak Power Rating (Watts)120
Shallow MountNo

General

Power Handling - Peak W120
Power Handling - Continuous W60
Impedance Ω4
Frequency Response Hz50 ÷ 21k
Sensitivity dB SPL93
Woofer size mm (in.)160 (6)
Tweeter size mm (in.)15 (0.6)
Woofer Voice Coil Ø mm (in.)25 (1.0)
Woofer magnetHigh density flux ferrite
Tweeter magnetNeodymium
Woofer coneWater-repellent pressed paper
