Kenwood Excelon 12" Oversized Subwoofer with strong magnetic circuit and thermal efficient system

Kenwood Excelon 12" Oversized Subwoofer

Speakers may be the most important piece of the sound quality puzzle. eXcelon speakers employ oversized drivers to enhance low-end range and large tweeters that improve mid- to high-range transitions, ideal for clear and dynamic vocals. Oversized woofers provide quick response and offer stable and powerful bass that remains true to the original recording.

Speaker and subwoofer development requires a diligent testing process including an anechoic chamber, power testing facility and the most advanced desktop applications for design and simulation. These high standards allow KENWOOD eXcelon speakers to deliver their expected performance and have long term reliability so your music can be enjoyed for many years.

Low frequency output is increased because of a larger cone size. The cutout diameter has remained the same making this feature of the new XR woofers ideal for most vehicles where space is a premium. The XR woofers are ideal for a small sealed box.

The newly designed cone features ribbing that adds strength to the cone and minimizes distortion.

Our engineers designed a strong magnetic circuit with the purpose of reproducing deep low frequencies. Their efforts employed a large magnet and optimized yoke.

By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has been improved dramatically delivering smooth and strong bass sound with long lasting reliability.

Maximum Power Handling:

Sensitivity:

Color:

Hertz Energy 12" Subwoofer with ultra flat design and robust ferrite magnet

Hertz Energy 12" Subwoofer

The Energy ES F30.5 car audio subwoofers is the ideal solution for those who look for a subwoofer of compact size, yet providing powerful and engaging sound. At its highest excursion point, the Ultra Flat profile reaches 85 mm (3.34 in.) height for the ES F20.5 subwoofer, 94 mm (3.7 in.) height for the ES F25.5 subwoofer and  106 mm (4.17 in.) for the ES F25.5 subwoofer. Care has been put into every detail of the design and building of these subwoofers, to ensure high mechanical quality as well as efficient thermal capability, to the benefit of bursting dynamics and startling power handling. Robust ferrite magnet motor assembly, pressed-paper cone, Back Vented Spider Support and copper voice coil, wound on aluminium former, are only some of the unique features of the Energy Flat subwoofers. The linear and solid design of the Energy, ES F20.5, ES F25.5 and ES F30.5, is enhanced by the ultra flat profile as well as by the Hertz logo on the dust-cap, making their cosmetics suitable to any installation.

Small size for installations without limits. Accurate study of the components‘ profile carried out more compact baskets and motor assemblies.

The Klippel quality control system is our guarantee to always produce a product entirely in compliance with the most challenging international standards.

Woofer Composition:

Kenwood 12" Subwoofer with PP Cone and diamond array pattern

Kenwood 12" Subwoofer-KFC-W12DVC

Kenwood 12" Subwoofer

Kenwood Excelon 12" Slim Subwoofer with carbon-glass fiber honeycomb cone and 4 ohms

Kenwood Excelon 12" Slim Subwoofer

Kenwood Excelon 12" Slim Subwoofer Offers:

Woofer Features: 12" Carbon Glass Fiber Honeycomb Cone

87548/DS_30-32.jpg

87548/DS_30-3.pdf

87548/DS_30-31.pdf

87548/DS_30-33.jpg

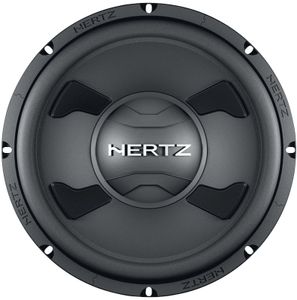

Hertz Dieci 12" Subwoofer with pure copper voice coil and venting system

Hertz Dieci 12" Subwoofer

The DS 30.3 car audio subwoofers box offer high efficiency and exceptional power handling. Equipped with a polypropylene membrane and butyl rubber surround, they provide high excursion with minimal distortion. An efficient cooling system ensures optimal heat dissipation, increasing their reliability. The Dieci subwoofers are designed for use in compact sealed or reflex enclosures; thanks to an exclusive, carefully thought-out design, they can be used in any installation.

Hertz Energy 12" Subwoofer with V-cone® technology and silver plated silicone

Hertz Energy 12" Subwoofer-ES 300D-5

The Hertz Energy.5 ES 300D.5 car audio subwoofers offer a dynamic bass and are capable of outstanding SPL never achieved in this category of the market. The introduction of the V-cone® technology had a big impact in the efficiency of the ES.5 subwoofers, also improving cone stiffness and reducing the weight of the moving assembly, allowing a higher strength voice coil for a higher peak power handling. The implementation of the surround and spider geometry, as well as the selection of the materials used, contributed to achieving unmatched mechanical and thus acoustical linearity. This, combined with a drastic reduction of the Vas, provides the ability to achieve high undistorted SPL output in even small enclosures. The Hertz Energy.5 subwoofers are the perfect choice for solid, powerful bass in perfect harmony with improved vehicle integration.

V-cone® technology with water-repellent paper membrane, for reduced moving assembly mass and increased sensitivity.

Wide-wave spider profile, for high mechanical resistance against impulsive stresses; its resin-bonded fibre ensures consistent electro-acoustic parameters in time.

High density foam surround, for extreme mechanical and acoustical linearity, even under high excursion.

Copper voice coil wound on aluminium former, combined with the spider support cooling system and bottom plate vent holes, for outstanding thermal capacity in power peaks.

Silver plated silicone shielded lead wires ending with tin-plated, high current terminals for high resistance against mechanical stress and low contact resistance.

Dual voice coil configuration, to maximize the amplifier’s achievable power and improve connection versatility.

High magnetic permeability plates and large magnet, ensuring a constant and even magnetic flux, for perfect low frequency control.

Butyl rubber gasket and magnet protective cover, provide ideal coupling to the mounting surface, damping basket resonances.

The exponential profile gets very close to the perfect one, providing exceptional dispersion.

Hertz Energy 12" Subwoofer-ES 300-5

The Hertz Energy.5 ES 300.5 car audio subwoofers offer a dynamic bass and are capable of outstanding SPL never achieved in this category of the market. The introduction of the V-cone® technology had a big impact in the efficiency of the ES.5 subwoofers, also improving cone stiffness and reducing the weight of the moving assembly, allowing a higher strength voice coil for a higher peak power handling. The implementation of the surround and spider geometry, as well as the selection of the materials used, contributed to achieving unmatched mechanical and thus acoustical linearity. This, combined with a drastic reduction of the Vas, provides the ability to achieve high undistorted SPL output in even small enclosures. The Hertz Energy.5 subwoofers are the perfect choice for solid, powerful bass in perfect harmony with improved vehicle integration.

Hertz SPL Show 12" SPL Dual Coil Subwoofer with pressed paper cone and four-layer aluminium voice coil

Hertz SPL Show 12" SPL Dual Coil Subwoofer-SX 300D

Hertz SPL Show 12" SPL Dual Coil Subwoofer

The Hertz SPL Show car audio subwoofers are the ideal solution for building mobile audio systems with emphasis placed on low frequency power and impact. Featuring a stacked double magnet motor assembly and 2 + 2 Ohm dual voice coil, the three models, SX 250D, SX 300D, SX 380D differ only in their cone diameter: 250 mm, 300 mm, 380 mm respectively. The SPL Show moving assembly is designed to ensure long and linear excursion. They feature a dual spider design and an aluminium voice coil wound on a four-layer former. The back vented spider support decreases the voice coil operating temperature, even during enhanced SPL usage.

Kenwood 12" Subwoofer with square array pattern and oversized diaphragm

Kenwood 12" Subwoofer-KFC-W3016PS

Low frequency output has been improved by increasing the cone area without changing the cutout diameter. By adopting a "Stress-free Spider" and a "Thermal Efficient System" the mechanical and thermal durability has also been improved dramatically delivering smooth and strong bass.

By using a polypropylene woofer cone with a "Square Array" pattern, cone strength is increased and low frequency performance is enhanced.

General Specs
Depth (in.)	12
Width (in.)	12
Height (in.)	5.2
Product Weight (lbs.)	8.8
Color Finish Name	Black
RMS Power Handling (Watts)	250
Peak Power Rating (Watts)	1000
Subwoofer Size	12"
Shallow Mount	No
Specifications
Maximum Power Handling:	500
Sensitivity:	91 dB
Styling
Color:	Black

Hertz Dieci 12" Subwoofer
