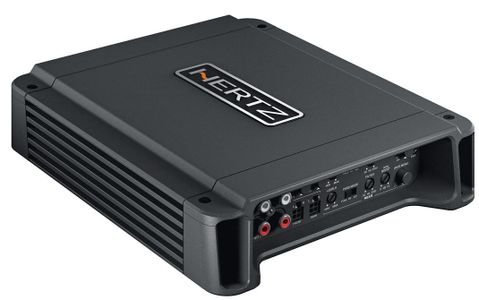

Hertz Compact Power D-Class Four Channel Amplifier

Model #: HCP4D

At a Glance

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems.

WarningProposition 65 Warning for California Residents
Hertz Compact Power D-Class Four Channel Amplifier

General Specs

ColorBlack
Depth (in.)7.48
Width (in.)8.46
Height (in.)1.97
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)1160
Bluetooth CapableNo
Color Finish NameBlack
Amplifier Channels4
Impedance2 - 4 Ohms
RMS Power Handling (Watts)435
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputYes
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs4
Product Weight (lbs.)4.27

Hertz Compact Power D-Class Four Channel Amplifier

Model #: HCP4D
299558
Model #: HCP4D
Hertz
$99,999.00

Request a Quote

At a Glance

HCP 4D is a D Class car audio amplifier, able to offer up to 1160W (RMS); it is the ideal choice for those who want high power levels in complex systems.

Get to know this product.

Extremely versatile, complete in its functions, provided with Speaker-In and RCA-In inputs to work with any head units, it has been designed to work also in mono (selectable mode), for a three-channel system with sub and front, or a powerful two-channels system.

All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier.

Refined Heatsink With High Convection Capability

The extruded aluminum heatsink provides high efficiency thermal performance; using the top side of the heatsink to effectively dissipate the heat generated by the electronic components. The internal temperature remains constant at all power levels.

Completed Filter Section

Large array of filters customized for each model, to achieve maximum versatility: Lo-Pass, Hi-Pass, Band-Pass, Full Range, Subsonic, Bass Boost, Phase and Mono. Filtered pre-amplified outputs along with multiple adjustments are featured on the HCP 1D, offering the user endless connection possibilities with any source.

HCP Electronics

Special balanced input circuitry rejects electro-magnetic disturbances present on the Pre-amplified or Speaker level inputs. Power supply stage features a multiple winding transformer and Low-ESR 105°C capacitors, selected to ensure high efficiency and current capability.

ART

Automatic Remote Turn-On/Off function, automatically turns the amplifier on and off with the OEM radio; eliminates the need for a remote signal from the source when using the Speaker-In. This function can also be disabled.

Specifications

General Specs

ColorBlack
Depth (in.)7.48
Width (in.)8.46
Height (in.)1.97
Preamp Outputs1
Amplifier ClassClass D
Amplifier Output (Watts)1160
Bluetooth CapableNo
Color Finish NameBlack
Amplifier Channels4
Impedance2 - 4 Ohms
RMS Power Handling (Watts)435
Water ResistantNo
Digital InputNo
Shallow MountNo
Speaker Level InputYes
Number Of Outputs4
Minimum Impedance Unbridged2 Ohm
Number Of Inputs4
Product Weight (lbs.)4.27
