Product Dimensions 1.33"h x 7.51"w x 4.76"d

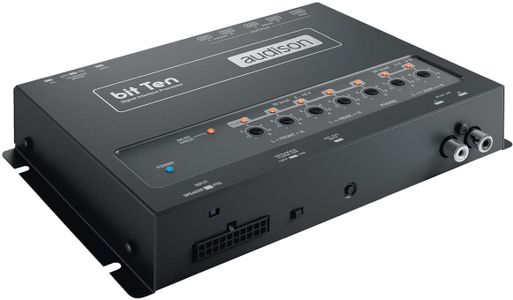

bit Ten is a multi-function digital processor featuring analog input, capable of transforming ordinary OEM or after-market system into a high-performance system.Read More
Provided with a 32 bit, 147 MHz clock speed DSP as well as 24 bit A/D and D/A converters, bit Ten is controlled by a software especially developed for signal treatment according to the vehicle acoustic peculiarities. Setting the parameters of each input single channel, setting the delays according to the listening position, adjusting crossovers and equalizers for each of the 5 output channels; all of these operations can be managed by the PC.
Thanks to the integration of the USS technology, the bit Ten can also be connected to headunits featuring the “speaker load detection” circuit that would otherwise mute the audio signal output.
During the installation phase, after converting the analog signal into digital, bit Ten automatically reconstructs a digital full-bandwidth stereo signal; de-equalizes the frequency response and, if necessary, reconstructs the central and subwoofer channels.The user can configure the output mode of each channel relative to the installed system.
USS technology allows bit processors to work with headunits featuring the “speaker load detection” circuit
Auto tuning by Audison bit Tune and communication with bit Drive portal.
De-equalization function to “flatten” any equalization applied by default by OEM sources.
General Specs | |
| Depth (in.) | 4.76 |
| Width (in.) | 7.51 |
| Height (in.) | 1.33 |
| Color | Black |
| Frequency | 68 steps @ 20 ÷20k Hz |
| App Integration | No |
| Speaker Level Input | Yes |
| Digital Output | No |
| Color Finish Name | Black |
| In Dash | No |
| Digital Input | No |
| Product Weight (lbs.) | 1.32 |
