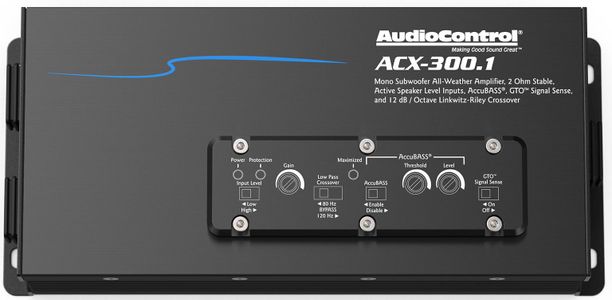

AudioControl® All Weather Monoblock ATV/UTV Amplifier

AudioControl

Model #:

ACX-300.1

Model #: ACX-300.1
1007245
AudioControl
$99,999.00

At a Glance

Product Dimensions 2.13"h x 9.88"w x 3.88"d

AudioControl’s ACX-300.1 all-weather monoblock amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. The ACX-300.1 will ensure your open-air speakers and subwoofers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless, making the ACX-300.1 all-weather monoblock amplifier the perfect solution for your next adventure.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

AudioControl ACX™ All-Weather Amplifiers are built tough from solid aluminum extrusions, sealed tight against the elements, and ready for your next adventure. Fully sealed quick connect wiring, and a water-tight chassis add up to an IPX6 rating, ensuring ACX amplifiers deliver the pure, uninterrupted power AudioControl is known for.

1 x 300 watts @ 2 ohms

1 x 175 watts @ 4 ohms

12 dB/Octave Linkwitz-Riley Alignment Crossover

GTO™ Signal Sense (Great Turn On)

2 RCA Inputs - Switchable for Low and High Level Signals

Optional wired ACR-1 Remote Control for Output Level

All-Weather Rated - IPX6 Rated

Cage-Free Op-Amps

Compact High Power Mono Subwoofer Amplifier

High Current Design

AccuBASS® Bass Management

Bulletproof 5 Year Warranty (When installed by an authorized AudioControl dealer)

Useful Documents
Manual
Specification Sheet
Specifications

General Specs

ColorBlack
Depth (in.)3.88
Width (in.)9.88
Height (in.)2.13
Color Finish NameBlack
Amplifier ChannelsMono Block
CollectionACX-300.1
Product Weight (lbs.)2.1

General

Power Output (RMS)1x175 Watts @ 4 Ohms, .1x300 Watts @ 2 Ohms
Frequency Response26 Hz - 22 kHz
Total Harmonic Distortion + N< 0.05%
S/N Ratio102 dBa, Ref 175 Watts @ 4 Ohms
Power / Ground Wire GaugeBetween 8 and 4 AWG
Recommended Fuse Rating30 Amps
Crossover12dB/Octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
Line/Speaker-Level Inputs500mV - 6V/(Low), 1V - 12VRMS (Hight)
Weight2.1 lbs
Dimensions9.875" W X 3.875" D X 2.125" H
Preamp/Speaker Level Inputs:2
In the BoxACX-300.1, Manual, Warranty
WarningProposition 65 Warning for California Residents
