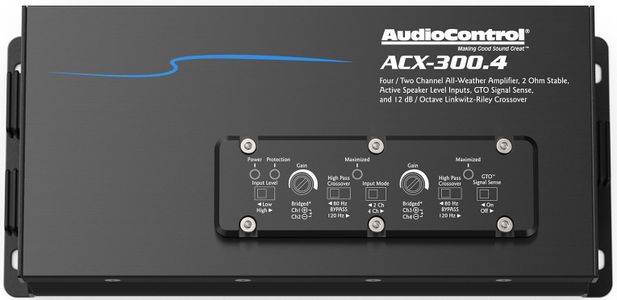

AudioControl® All Weather 4 Channel ATV/UTV Amplifier

AudioControl

Model #:

ACX-300.4

Model #: ACX-300.4
1009607
AudioControl
$99,999.00

At a Glance

Product Dimensions 2.13"h x 9.88"w x 3.88"d

AudioControl’s ACX-300.4 all-weather amplifier delivers honest power levels to the sound system in your boat, utv, motorcycle, and more. for a two or four channel system, the ACX-300.4 will ensure your open-air speakers deliver plenty of punch and clarity, all day long. Installer-friendly, heavy gauge quick-connect wiring makes installation quick and painless.Read More

Available in Store Only

Get to know this product.

Product Overview

Product Overview

4 x 75 watts @ 2 ohms

4 x 50 watts @ 4 ohms

150 watts @ 4 ohms bridged

IPX6 Rated

GTO™ Signal Sense

High and low input modes

4 and 2 channel input modes

Linkwitz-Riley Crossover

Bulletproof 5 year warranty (when installed by an authorized AudioControl dealer)

Useful Documents
Manual
Specification Sheet
Brochure
Specifications

General Specs

ColorBlack
Depth (in.)3.88
Width (in.)9.88
Height (in.)2.13
Color Finish NameBlack
Amplifier Channels4
CollectionACX-300.4
Product Weight (lbs.)7.2

General

Power Output (RMS)4x50 Watts @ 4 Ohms , .4x75 Watts @ 2 Ohms , 2x150 Watts @ 4 Ohms Bridged
Frequency Response26 Hz - 22 kHz
Total Harmonic Distortion + N< 0.05%
S/N Ratio102 dBa, Ref 50 Watts @ 4 Ohms
Power / Ground Wire GaugeBetween 8 and 4 AWG
Recommended Fuse Rating30 Amps
Crossover12dB/Octave Linkwitz-Riley, 80 Hz, 120 Hz, Bypass
Line/Speaker-Level Inputs500mV - 6V(Low) , 1V - 12VRMS (High)
In The BoxACX-300.4, Manual, Warranty
