AudioControl® AC-LGD 20 Load Generating Device and Signal Stabilizer

Today’s factory amplifiers feature built in protection circuits which can mute some or all audio outputs when the factory speakers are removed. The AC-LGD 20 has been designed to generate load and stabilize signal from amplified factory system to ensure the best possible audio.

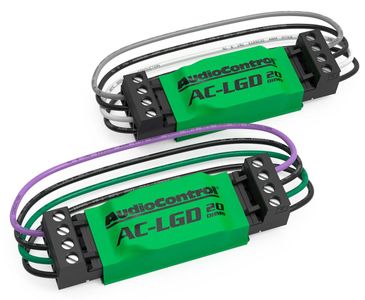

The AC-LGD 20s come in pairs and can be easily connected to your AudioControl Factory System Upgrade product with the pre-wired connectors. The AC-LGD 20 is installed between the factory speaker outputs and your line output converter or speaker level inputs on your amp or processor. Each AC-LGD 20 pair comes pre-wired with EIA standard wire colors for front and rear connections.

• Maximum Input Voltage: 15 Vrms (50 watts)
• Input Impedance: 20 Ohms
• Dimensions (without wires/connectors): 2.3?L x 1.0?W x .06?H
• Dimensions (with wires/connectors): 9.75?L x 1.0?D x .06?H
• Weight (single LGD): 1.4oz (39g)
• In the box: One pair of prewired AC-LGD 20s

*IDEAL FOR OEM NON-AMPLIFIED (NO EXTERNAL AMPLIFIER) DODGE®, CHRYSLER®, JEEP®, MASERATI® SOUND SYSTEMS
